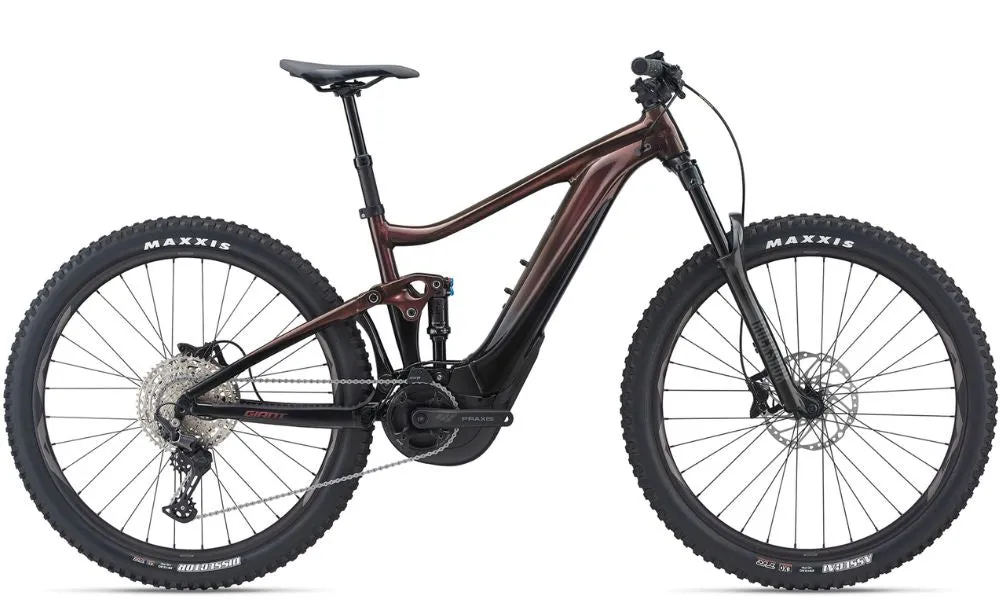

DEMO Giant 2021 Trance X E 3 Pro
Faster up the climbs, longer loops, more singletrack fun on any given day. Give yourself the freedom to extend your trail-riding adventures with this powerful, smooth-riding 29er.
The SyncDrive Pro motor gives the new Trance X E Pro 29 a massive 80Nm of torque and 360 percent tunable support, all controlled by the new Giant E-bike App. This gives you the freedom to ride trails the way you want to. You can choose full power to ease your pedalling effort or tune it less aggressively to get more of a workout. Featuring 140mm of smooth Maestro suspension travel in the rear, 150mm up front, and progressive frame geometry that’s designed for 29-inch wheels, this is a whole new way to tackle technical singletrack trails. The EnergyPak 625Wh battery is cleanly integrated into the downtube of the lightweight ALUXX SL frame.
Smooth, powerful support
SyncDrive Pro motor delivers 80Nm of torque and tunable support ratios up to 360 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
29er confidence and control
Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
Adjustable Frame Geometry
Flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.8/76.0 head/seattube angle and 30mm BB drop) for faster, open terrain or high (66.5/76.7 head/seattube angle and 20mm drop) for slower, tighter singletrack.
Specifications
DEMO Giant 2021 Trance XE 3 Pro
Frame
Colour: Gloss Chameleon Mars/Black
Frame: ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 140mm Maestro Suspension System, 'Boost' 148x12QR, ISS, Giant EnergyPak Plus Range Extender Compatible
Fork: RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimised
Shock: Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Crankset: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set (S:160, M/L: 165, XL:170)
Pedals: Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
Bottom Bracket:
Rear Derailleur: Shimano Deore 12-speed
Front Derailleur: MRP 1X custom "V3" co-molded TR chain guide
Derailleur Shifter: Shimano SLX SL-M7100-R, 12sp
Freewheel/Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
Braking System
Brakes: [F] and [R] Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake Levers: Shimano Deore BL-M4100 I-spec EV
Wheels

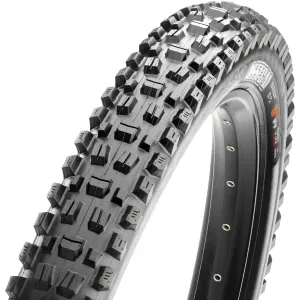

Tyres: [F] Maxxis Assegai 29x2.6" foldable, Tubeless, EXO [R] Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO
Wheels/Rims: Giant AM 29", Tubeless ready, 30mm inner width
Hubs: [F] Shimano MT410 Boost, Center-Lock 110x15 [R] Shimano MT410 Boost, Center-Lock 148x12mm Micro-Spline Drive Body Thru-axle
Other
Handlebar: Giant Contact 35 Trail, 35x780mm
Stem: Giant Contact SL 35
Saddle: Giant Romero Trail
Seat Post: Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
E-Bike
Drive Unit: Giant SyncDrive Pro, 80Nm
Battery: Giant EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible
Display:
