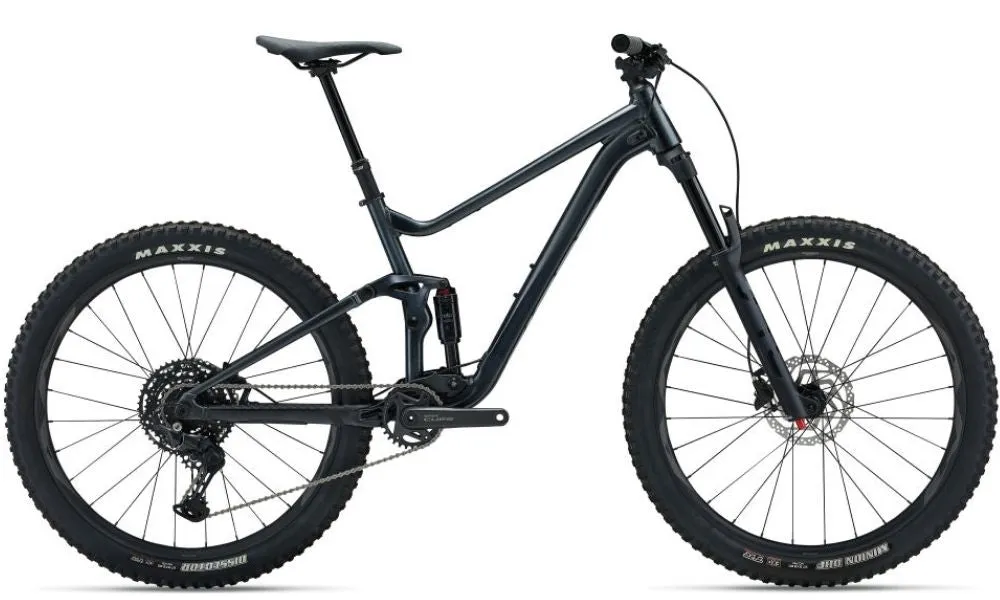

Giant 2024 Stance
EVERYTHING YOU NEED TO HAVE FUN ON THE TRAIL. SMOOTH SUSPENSION LETS YOU FLOAT OVER ROCKS, ROOTS AND RUTS. CONFIDENT GEOMETRY KEEPS YOU IN CONTROL. AND QUICK-HANDLING 27.5 WHEELS WITH HIGH-VOLUME TIRES GIVE YOU FULL CONTROL ON SINGLETRACK TERRAIN.
Modern trail geometry
A slacker head tube angle (65.5 degrees) and steeper seat tube angle (76.5 degrees) place the rider in a confident, balanced position to take on technical climbs and descents.
Proven suspension setup
FlexPoint rear suspension offers 125mm of smooth, active travel. The frame is paired with a 140mm fork, delivering maximum confidence on climbs and descents.
Lightweight aluminum frame
The ALUXX aluminum frameset is hand-built and engineered in-house by the world leader in alloy bicycle technology. An external storage space makes it easy to carry tools, snacks and other ride essentials.
Specifications
Giant 2024 Stance
Frame
Colour: Black DiamondFrame: ALUXX-Grade aluminium, 125mm FlexPoint suspension
Fork: Giant STL 34 RCL, 140mm, Boost 15x110
Shock: Suntour Raidon R
Drivetrain
Crankset: Shimano CUES, U6000-1, 30t S:170mm, M:170mm, L:170mm, XL:170mmPedals:
Chain: Shimano CUES, LG500
Bottom Bracket: Praxis, press fit
Rear Derailleur: Shimano CUES, U6000, Shadow
Front Derailleur: NA
Derailleur Shifter: Shimano CUES, SL-6000, 1x10
Freewheel/Cassette: Shimano CUES, LG300, 11-48
Wheels
Tyres: [F] Maxxis Minion DHF 27.5.x2.5 WT, wire, TLR, EXO, tubeless, [R] Maxxis Dissector 27.5x2.4 WT, wire, TLR, EXO, tubelessWheels/Rims: Giant AM 27.5, tubeless ready sleeve-joint rim, 30mm inner width
Hubs: "F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Braking System
Brakes: Shimano BR-MT200, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mmBrake Levers: Shimano BL-MT201
Other
Handlebar: Giant Contact Trail, 35mmStem: Giant Contact 35mm S:40mm, M:40mm, L:50mm, XL:50mm
Saddle: Giant Romero
Seat Post: Giant Contact Switch dropper, remote S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 150mm travel / 30.9 x 440mm
Geometry
Giant 2024 Stance
| XS | S | M | L | ||
| A | SEAT TUBE LENGTH (mm) | 375 | 400 | 425 | 450 |
| B | SEAT TUBE ANGLE | 76.5° | 76.5° | 76.5° | 76.5° |
| C | TOP TUBE LENGTH (mm) | 543 | 560 | 592 | 620 |
| D | HEAD TUBE LENGTH (mm) | 100 | 110 | 120 | 125 |
| E | HEAD TUBE ANGLE | 65.5° | 65.5° | 65.5° | 65.5° |
| F | FORK RAKE (mm) | 44 | 44 | 44 | 44 |
| G | TRAIL (mm) | 117.5 | 117.5 | 117.5 | 117.5 |
| H | WHEELBASE (mm) | 1145 | 1164 | 1198 | 1226 |
| I | CHAIN STAY LENGTH (mm) | 435 | 435 | 435 | 435 |
| J | BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 | 20 |
| K | STACK (mm) | 594 | 603 | 612 | 616 |
| L | REACH (mm) | 400 | 415 | 445 | 470 |
| M | STAND OVER HEIGHT (mm) | 731 | 728 | 738 | 754 |
| N | HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| O | STEM LENGTH (mm) | 40 | 40 | 40 | 50 |
| P | CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| Q | WHEEL SIZE | [F] 27.5" [R] 27.5" | [F] 27.5" [R] 27.5" | [F] 27.5" [R] 27.5" | [F] 27.5" [R] 27.5" |
